Rex's, Lehigh County

If you find errors in the data please contact Bill Caswell.

If you would like to provide information on covered bridges that no longer exist from your state, or adopt a state to work on, we would certainly welcome your assistance. Please contact Trish Kane for more information.

Inventory Number: PA/38-39-04
County: Lehigh County
Township: North Whitehall
Town/Village:
Bridge Name: Rex's
Crosses: Jordan Creek
Truss type: Burr
Spans: 1
Length: 138' overall, 117'-4" span
Roadway Width: 18'
Built: 1858
Builder:
When Lost: standing
Cause:
Latitude: N40 38.095
Longitude: W075 36.758
See a map of the area
Topographic map of the area
Directions: 1.1 miles west of on PA309 and Orefield on Kernsville Rd. (SR4003) then 0.5 miles right on Jordan Rd. Located between Kernsville and Weidasville. West of Orefield.

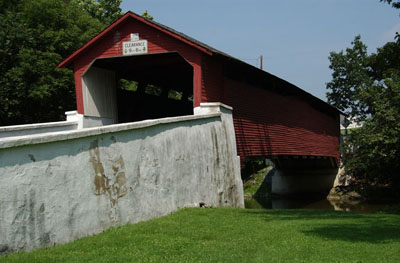

Rex's Bridge, North Whitehall, Lehigh County, PA. Built 1858
© Lisa Plamondon

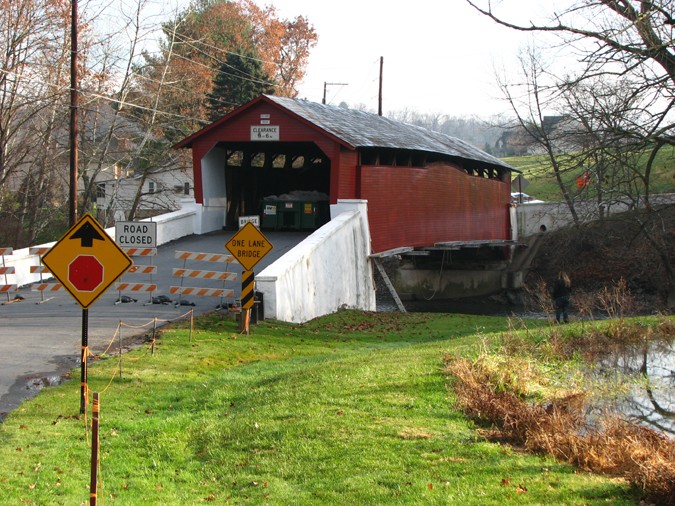

Rex's Bridge, North Whitehall, Lehigh County, PA. Built 1858
Bill Caswell Photo, November 27, 2011

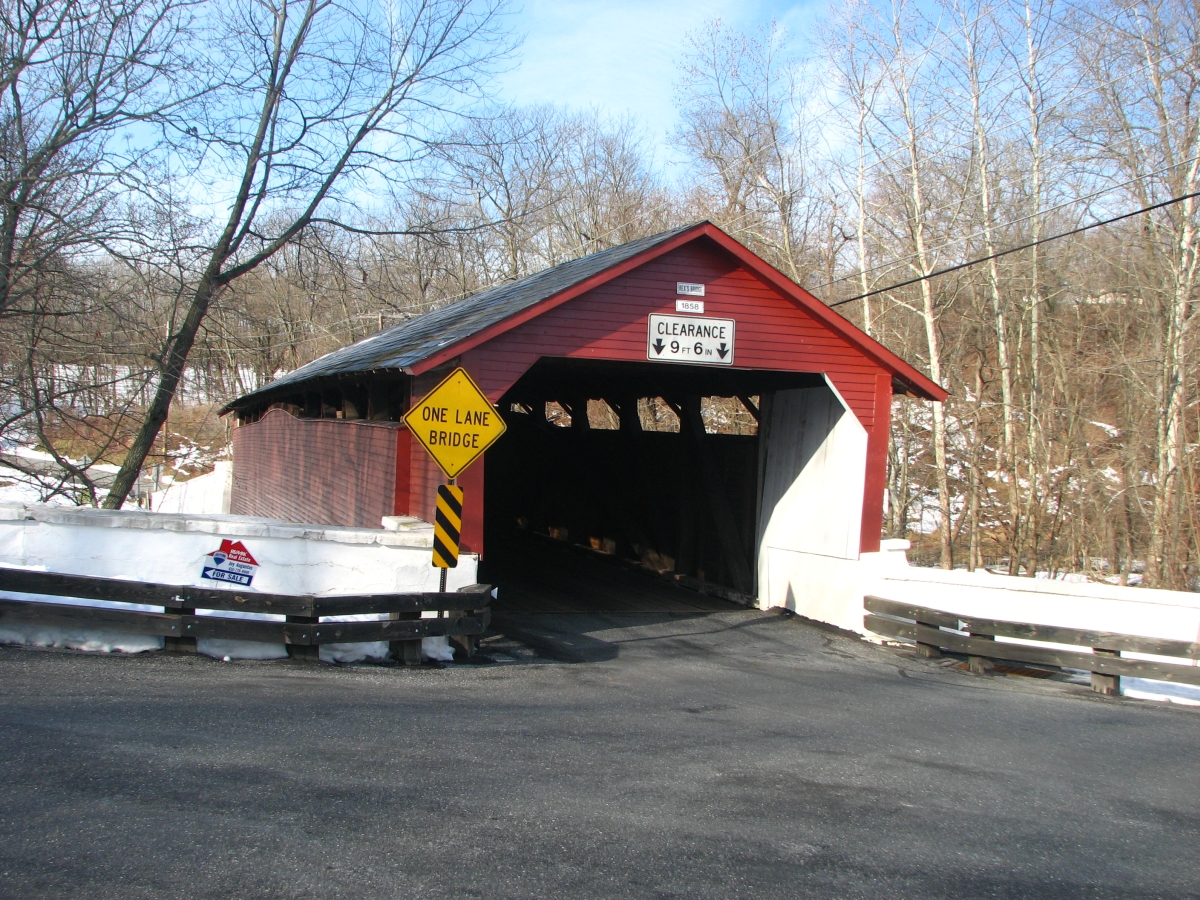

Rex's Bridge, North Whitehall, Lehigh County, PA. Built 1858
Bill Caswell Photo, Februsry 6, 2016

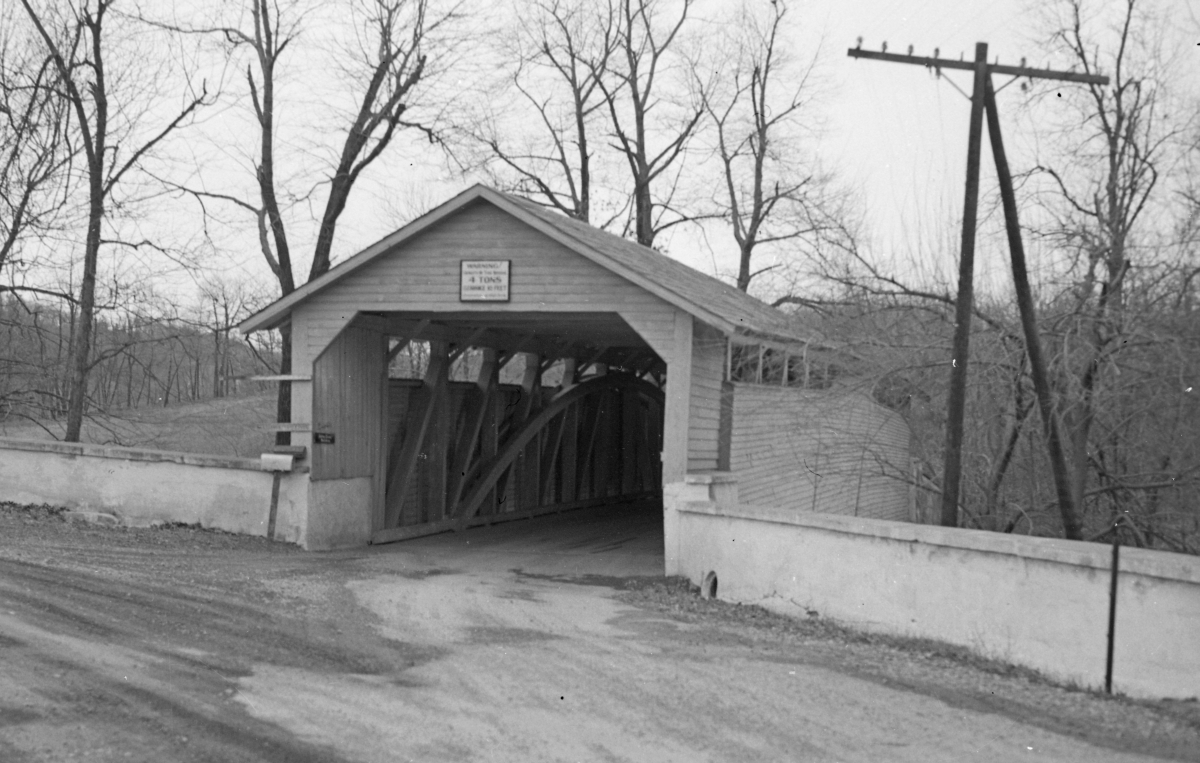

Rex's Bridge, North Whitehall, Lehigh County, PA. Built 1858
Herbert Richter Photo, December 12, 1954, NSPCB Archives

Comments:

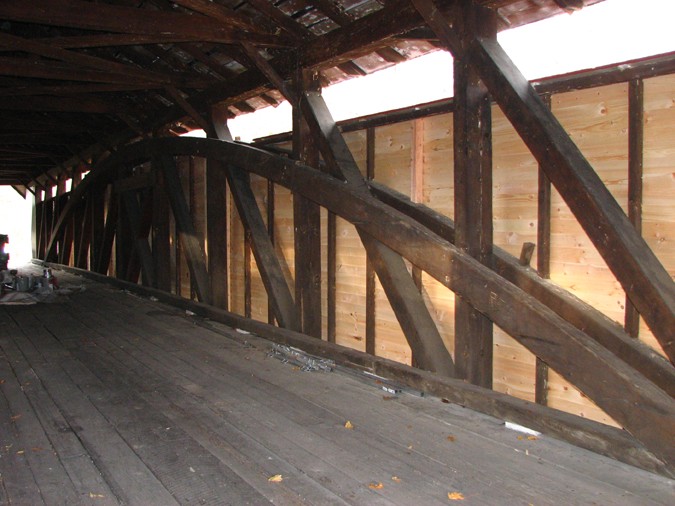

10-panel truss. Per The Morning Call (Allentown), April 13, 1910, Rex's Bridge was known as County Bridge #30. It was reported as 18' wide and 121' long. The current clearance of 9'6" on a sign above the portal is a safe clearance. The actual clearance is 12'5" (Field study).

Sources:
Evans, Benjamin D. & June R.. Pennsylvania's Covered Bridges, 2001, page 194
Kipphorn, Thomas. Information received by email, December 2007
National Society for the Preservation of Covered Bridges. World Guide to Covered Bridges, 2021, page 121
