Larkin (relocation #2), Chester County

If you find errors in the data please contact Bill Caswell.

If you would like to provide information on covered bridges that no longer exist from your state, or adopt a state to work on, we would certainly welcome your assistance. Please contact Trish Kane for more information.

Inventory Number: PA/38-15-11#2
County: Chester County
Township: Upper Uwchlan
Town/Village:
Bridge Name: Larkin (relocation #2)
Crosses: intermittent man made tributary of Pickering Creek
Truss type: Burr
Spans: 1
Length: 77' overall, 65' span
Roadway Width: 14'-6"
Built: 1881 (M1972 & 2006)
Builder: Menander & Ferdinand Wood
When Lost: standing
Cause:
Latitude: N40 04.948
Longitude: W075 41.135
See a map of the area
Topographic map of the area
Directions: 0.4 miles southeast of jct with PA100 on Graphite Mine Rd. on left side of road.

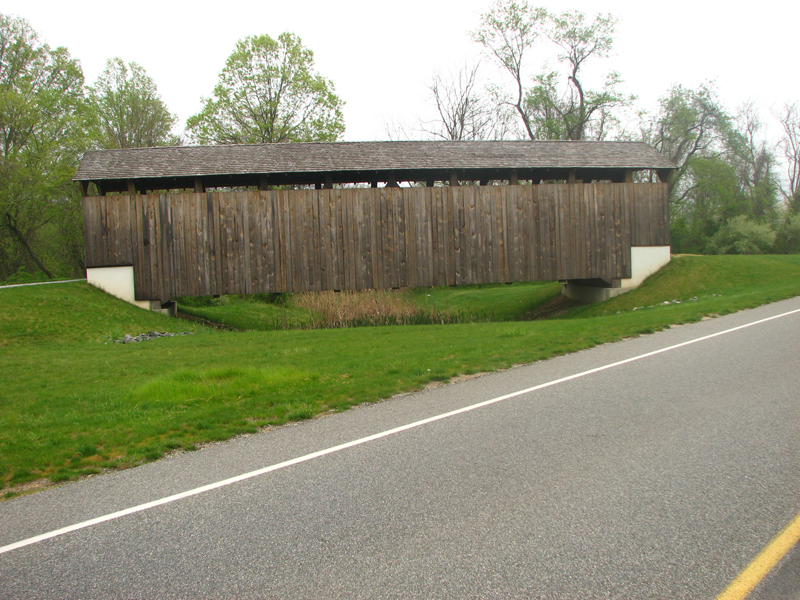

Larkin's Mill Bridge (relocation #2), Upper Uwchlan, Chester County, PA. Built 1881 (M1972 & 2006)
Bill Caswell Photo, April 21, 2012

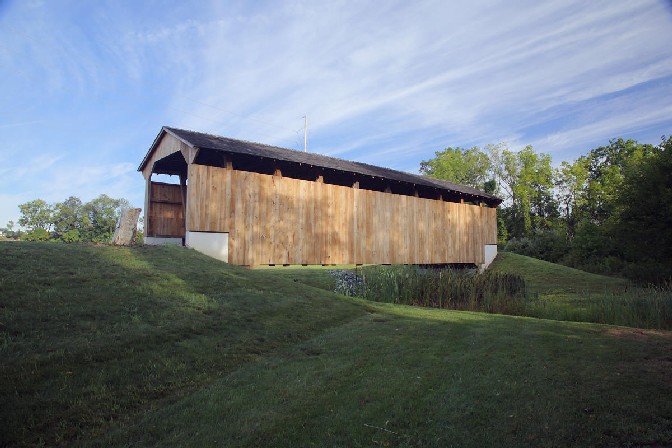

Larkin's Mill Bridge (relocation #2), Upper Uwchlan, Chester County, PA. Built 1881 (M1972 & 2006)
Bob Sheldon Photo, August 27, 2008

Larkin's Mill Bridge (relocation #1), Chester County, PA. Built 1881 (M1972)
Jackson Betz Photo, March 2004

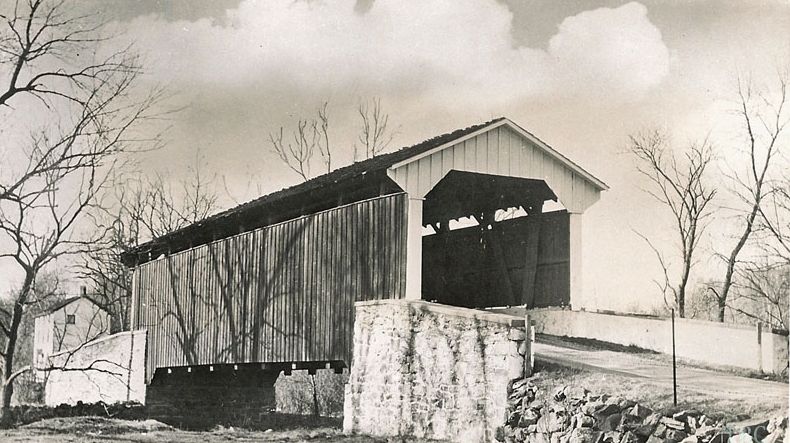

Larkin's Mill Bridge, Upper Uwchlan, Chester County, PA. Built 1881 (M1972 & 2006)
Todd Clark Collection

Comments:

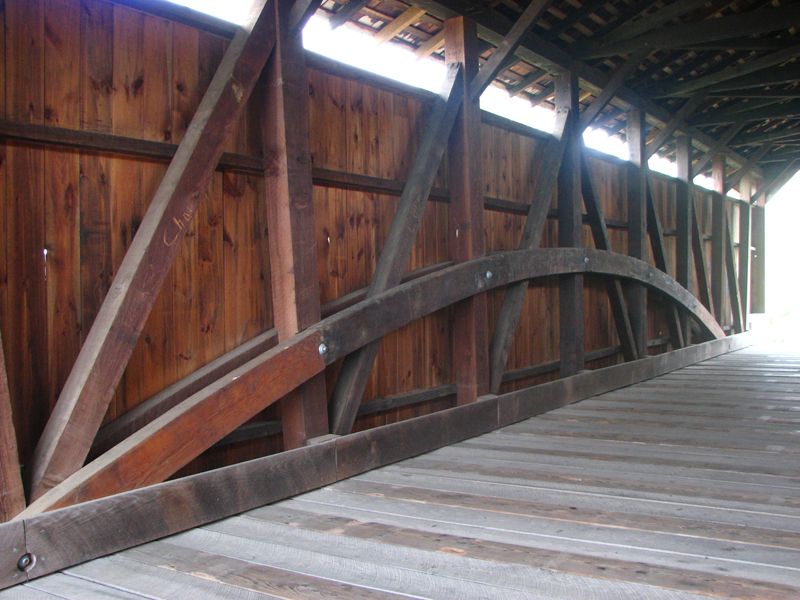

8-panel truss. Per Along the Brandywine, the mill was built in 1823 by Richard and Phoebe Bicking. Later Jesse Larkin operated the mill as a gristmill. J. H. Thompson operated the mill from 1902 to 1936. In 1972 it was moved by Mullen and Ranalli, House Movers of New Jersey at a cost of $19,200.00 in 1972, without dismantling it, slightly over one mile to the north to span an intermittent tributary of Marsh Creek. Concrete foundations were prepared at an additional cost of $6,685.00 about 1,200 feet east of Milford Road near its dead end at the reservoir in Upper Uwchlan Township. During its 35 year existence at the site, it never was fully accessible. The visitor had to fight through weeds and briers, then climb up into the bridge. The bridge was dismantled and moved about 1-3/4 miles east-northeast from the second location to the present site near Byer's Station in Upper Uwchlan Township and rebuilt during the spring and summer of 2006. It spans a man-made ditch dug especially for it that empties into Pickering Creek about 150' to the northeast. A portion of the original timbers were used, but there is a great deal of new construction in it.

Sources:
Evans, Benjamin D. & June R.. Pennsylvania's Covered Bridges, 2001, page 79
James, Arthur E.. Covered Bridges of Chester County, PA, 1976, page 86
Zebley, Frank R., Along the Brandywine, 1940.
Travis, Dale. Pennsylvania Covered Bridges List, updated to 26 Aug 2004, http://www.dalejtravis.com/cblist/cbpa.htm (23 Sep 2004)
National Society For the Preservation of Covered Bridges. Covered Bridge Topics, Volume XXXIX, No. 3, Summer 1981, page 12
Moll, Fred J.. Pennsylvania's Covered Bridges - Our Heritage, 2004, pages 86-87
Kipphorn, Thomas. Information received by email, May 2007
National Society for the Preservation of Covered Bridges. World Guide to Covered Bridges, 2021, page 105
