Bennett-Bean, Oxford County

If you find errors in the data please contact Bill Caswell.

If you would like to provide information on covered bridges that no longer exist from your state, or adopt a state to work on, we would certainly welcome your assistance. Please contact Trish Kane for more information.

Inventory Number: ME/19-09-03
County: Oxford County
Township: Lincoln Plantation
Town/Village: Wilson's Mills
Bridge Name: Bennett-Bean
Crosses: Magalloway River
Truss type: Paddleford
Spans: 1
Length: 100' roof, 84', 92' floor
Roadway Width: 14’- 6”
Built: 1898
Builder: Mason Brothers
When Lost: standing
Cause:
Latitude: N44 55.149
Longitude: W071 02.301
See a map of the area
Topographic map of the area
Directions: 1.6 miles south of Wilson's Mills on ME16, then 0.3 miles right on Littlehale Rd. On bypassed section of road.

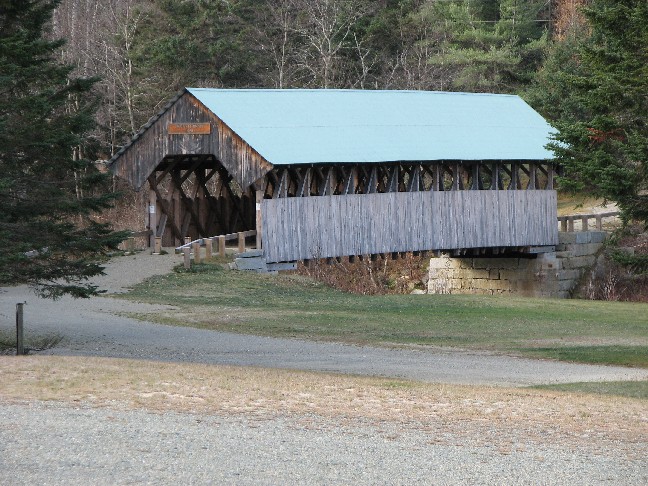

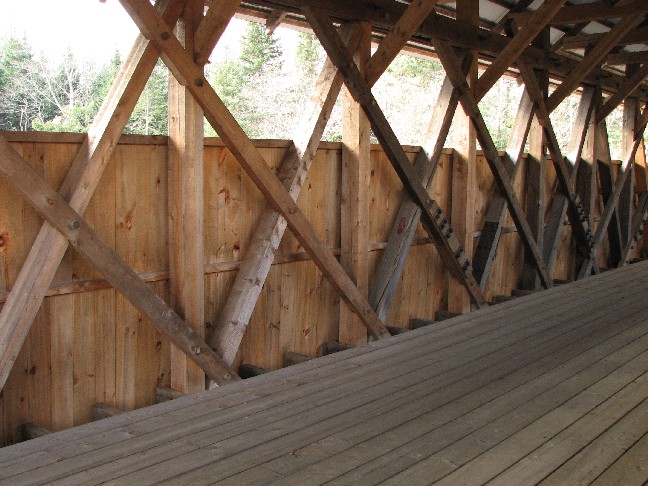

Bennett Bridge, Lincoln Plantation, Oxford County, ME Built 1898
Bill Caswell Photo, November 2007

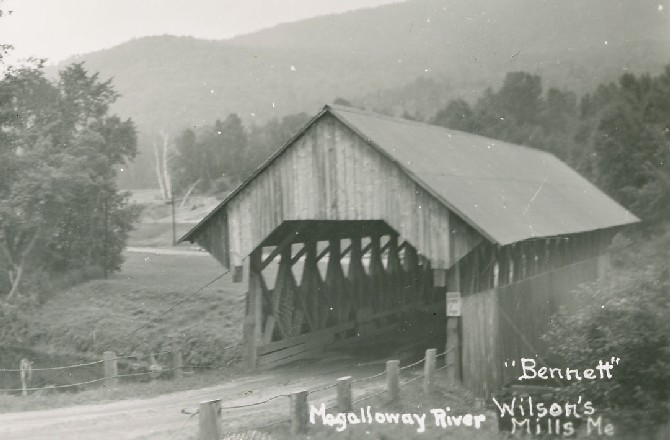

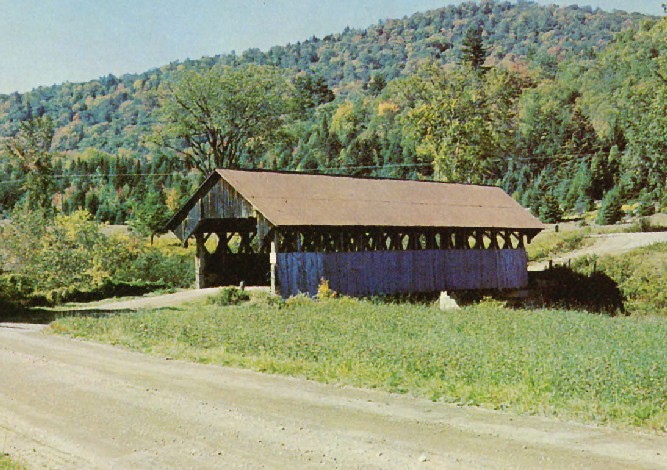

Bennett Bridge, Lincoln Plantation, Oxford County, ME Built 1898
Richard E. Roy Collection

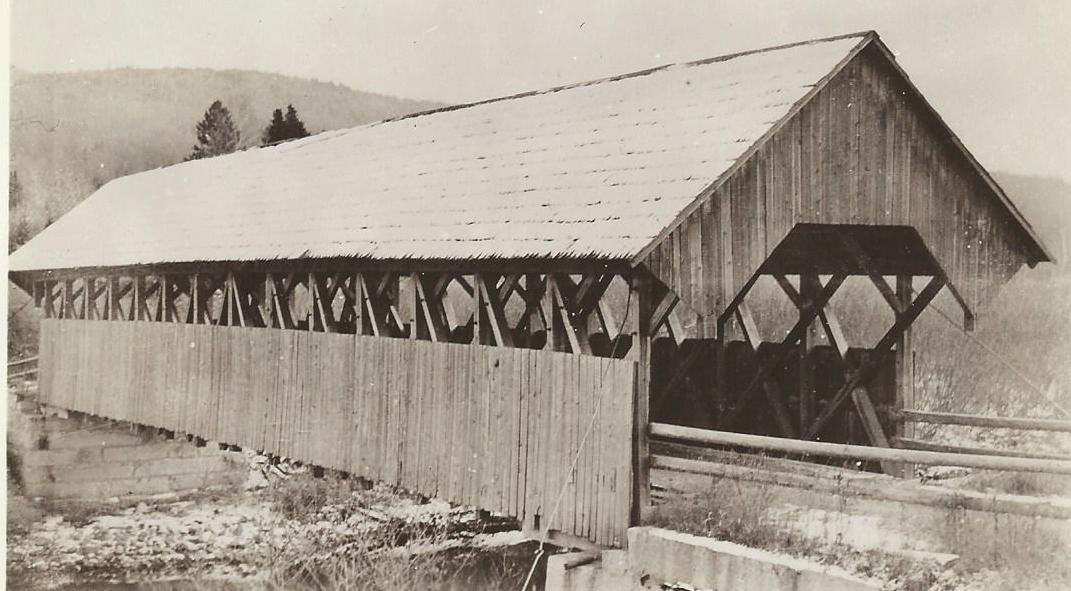

Bennett-Bean Bridge, Lincoln Plantation, Oxford County, ME Built 1898
November 5, 1924 Photo, Maine Department of Transportation Archives

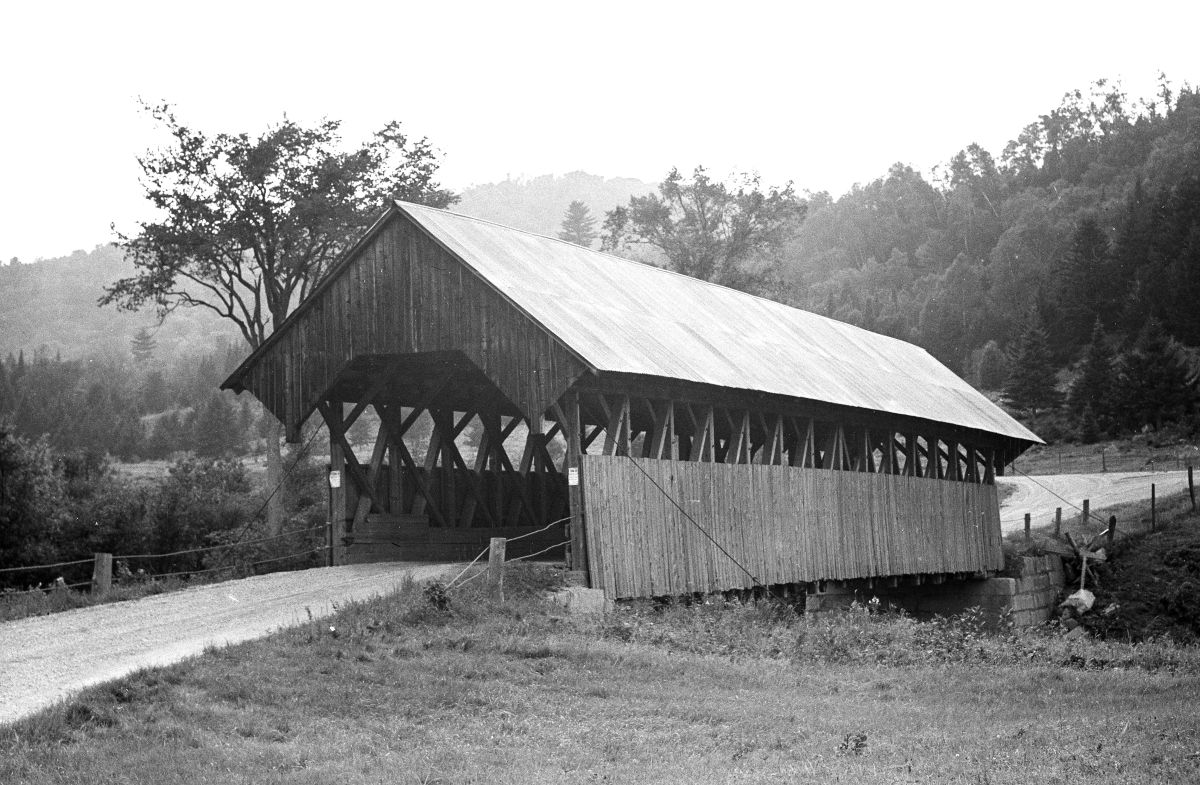

Bennett-Bean Bridge, Lincoln Plantation, Oxford County, ME Built 1898
Earll Richard Stone Photo

Comments:
14-panel truss. This bridge was covered in 1899. The original abutments were log cribs which were later replaced with granite. It was closed to traffic on September 9, 1985.

Sources:
National Society For the Preservation of Covered Bridges. Covered Bridge Topics, Volume LIX, No. 3, Summer 2001, page 8
Conwill, Joseph D.. Images of America - Maine's Covered Bridges, 2003, page 67
National Society for the Preservation of Covered Bridges. World Guide to Covered Bridges, 2021, page 36
